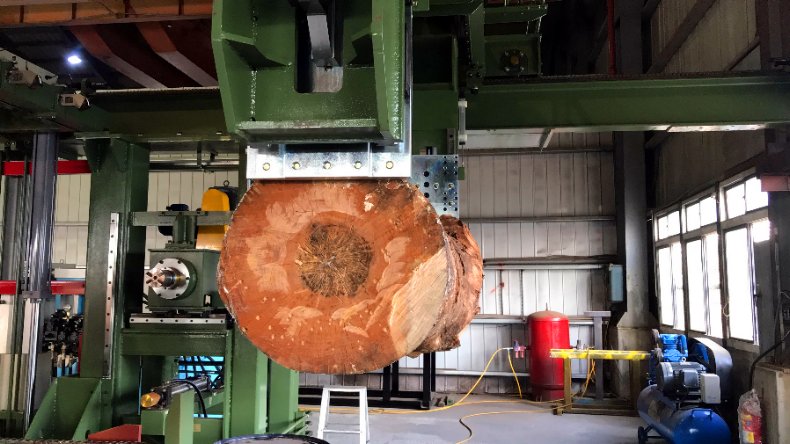

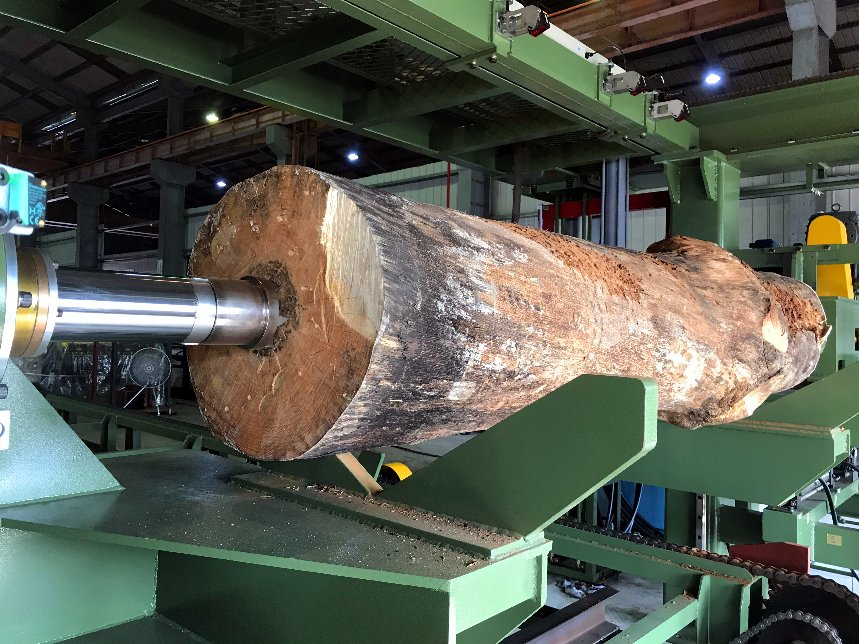

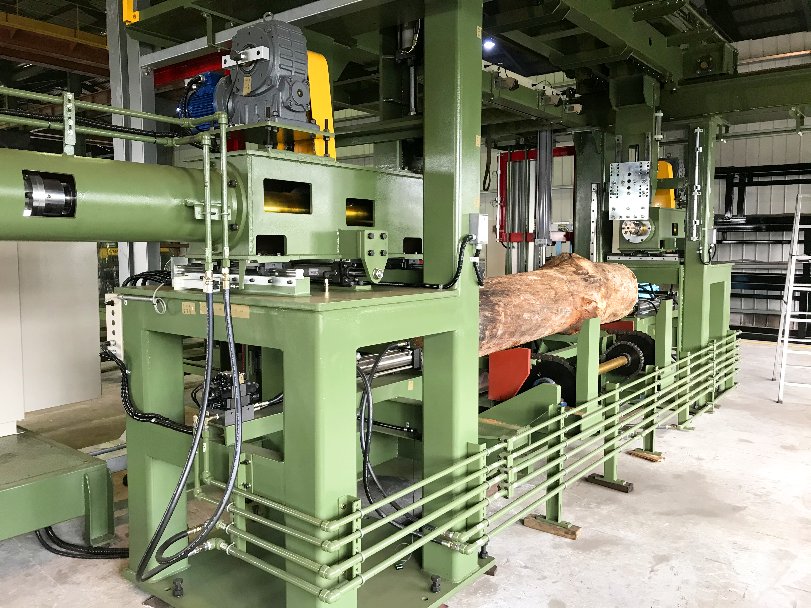

Automatic XY Centering Log Charger

Automatic XY Centering Log Charger

Unlike traditional log charger, this equipment uses computer software to automatically search and calculate veneer and face veneer output with accurate precision. effectively utilizing every inch of the log that is usable .
The result is a decrease in cost and increase profit.


This equipment comes with an automatic data managing system that is capable the statistics to rotary lathe to be effective the cuts
face veneer and core veneer measurement of it is current status and raise it is output efficiency. optimum centering position,increase veneer recovery rate

Complete detection system provides for a more accurate understanding of the shape of log
The lathe can be operated automatically using data on the diameter of the log

Automatic wood log feeding minimizes down time for lathe step feeding
Proprietary centering software calculates the maximum efficiency depending on log species and purpose of use

specification:
1.	Log working diameter	300-1650mm
2.	Log working length	2100-2650mm
3.	Work cyclo	16 sec/cyclo
4.	XY scanning centering by laser
5.	log conveyor  with 6000mm
