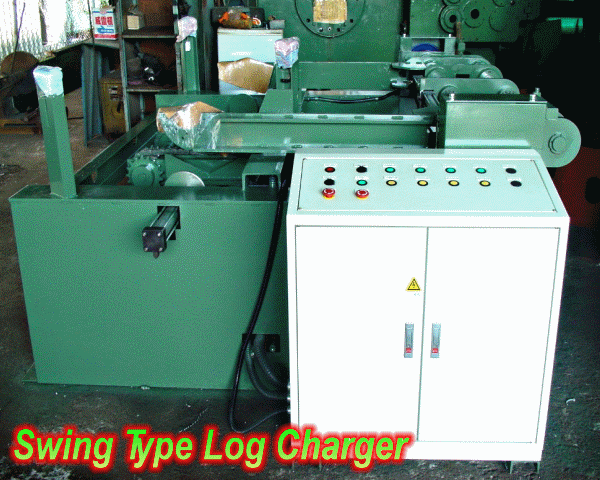

5ft Swing Log Charger



 Simple series Specification

1.

Log working diamete

150-800mm

2.

Log working length

920-1520mm

3.

Work cyclo

6sec/cyclo

4.

centering drive V frame

5.

log conveyor (not include)

6m

6.

Motor For

For oil pump

7.5kw

7.

For mid conveyor

0.75kw

8.

For log conveyor(not include)

3.7kw



5 feet  Swing Swing Charger-SI-LC05

1.

Log working diameter

150-800mm

2.

Log working length

920-1520mm

3.

Work Cyclo

10sec/cyclo

4.

Centering Drive

Parallelogram

5.

Log conveyor

6m (不包含)

Power For

7.

Hydraulic Pump

7.5kw

8.

For Mid Conveyor

0.4kw

9.

Log Chain Conveyor

3.7kw
