• V- Holder Centering Log Charger

V- Holder Centering Log Charger


V-Holder Centering Log Charger

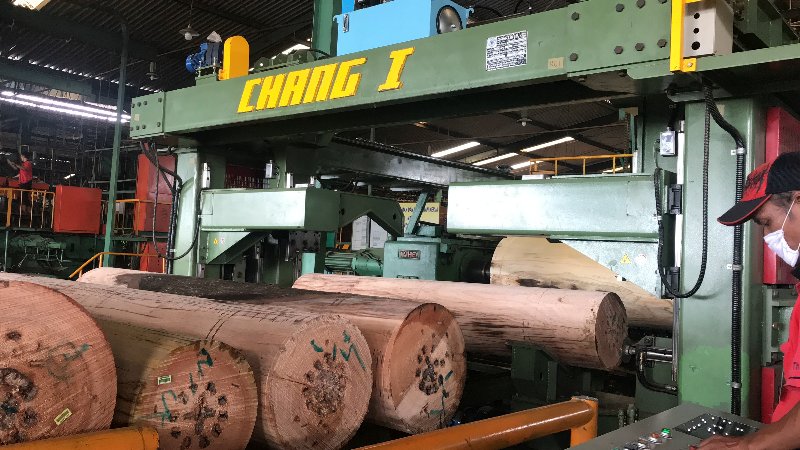

log charger

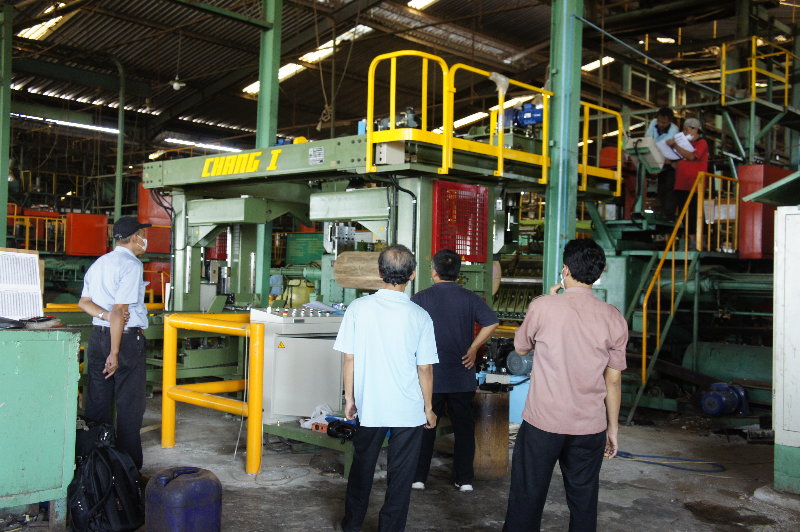

log xy charger

Due to log wood has Round-Up already, No need complicated of calculate with measure to centering log wood . Then Auto feeding to peeler lathe.
Mechanical alignment centering wood log with simple mathematical operation geometric.Still can be get the maximum utilization of log wood . Low cost with high effective.

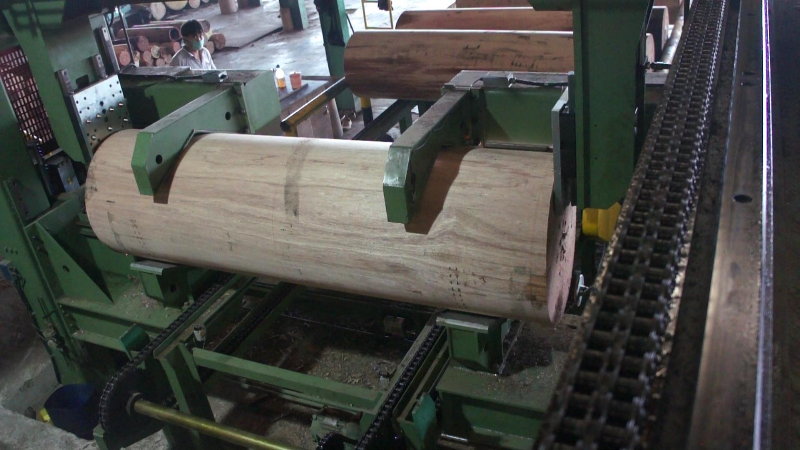

Log centering charger

SPECIFICATION:

Max.working length

2750m/m

Min.working length

1900m/m

Max.working diameter

1300m/m

Min.working diameter

350m/m

Work cycle time

10sec/cycle

Include Mid Conveyor (Include of Log Chain Conveyor) 6000mm

Motor For

For Oil-Pump

7.5kw

For Mid Conveyor

2.2kw

Log Centering: Double V Type-Holder
