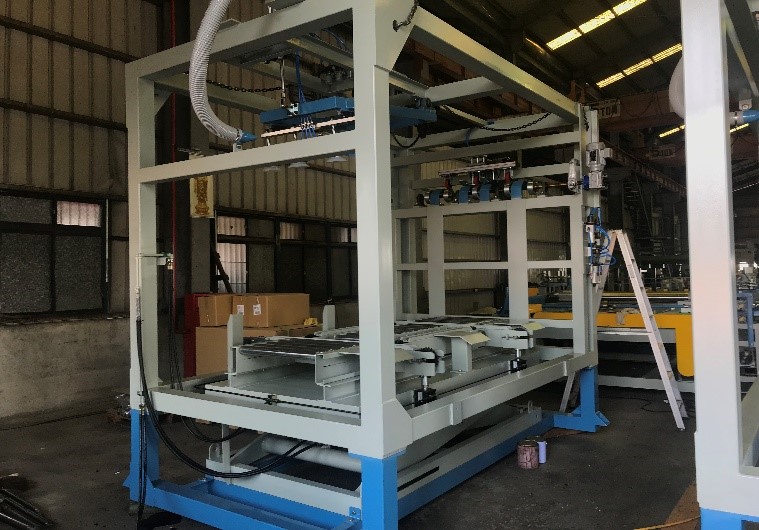

Heavy Duty Type Auto Panel Feeder (Frame Type)


Heavy Duty Type Auto Panel Feeder (Frame Type)

(Automatic & High-Speed Type)

Our auto feeder is designed to feeding either a wood panel board  production line . These units are completely automatic and integrated with the host machine.  Built with industrial use in mind, our auto feeder is built for high speed use under thin panel sheet or heavy duty both conditions.

Plywood feeder11panel feeder


※Alignment Device System for 3' x 6' , 4' x 8'

※Air Jet Sprayer: Air Blower

※Feeding Stopper Limiter: Prevent 2 of sheet feeding to the production line.

※Feed Speed :15Pcs to 19Pcs/min


Specification

Item

Description

吸盤式輸送裝置

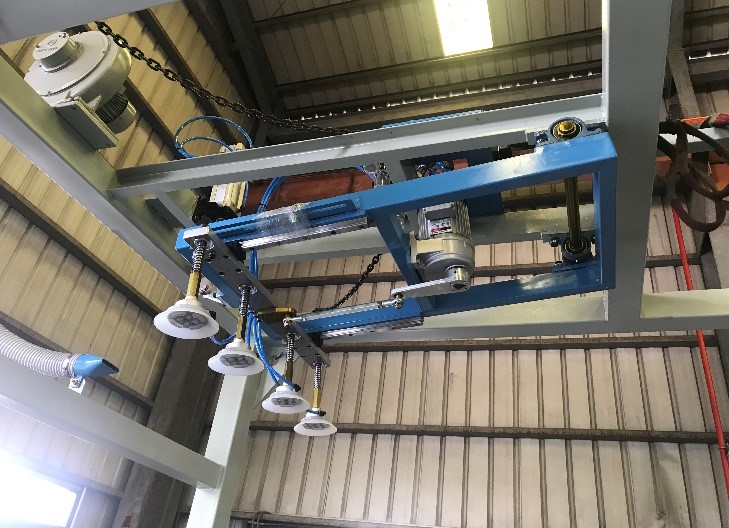

Sucker Feeder Device

工作厚度Available Thickness

2.7mm ~30mm

工作寬度Working Width:

900mm ~1250mm(3feet, 4feet)

工作長度Working Length

1800 mm~2440mm

滾輪輸送馬達 Roller Feed Motor

1.5kw

Item

Description

油壓升降平台

Roller & Chain

Conveyor Hydraulic Table Lifter

檯面尺寸 Table Size:

1220mm x 2440mm

升降行程Lifter Stroke

400mm to1000mm

檯面最大載重Maximum Loading :

3000kg

油壓馬達馬力 Hydraulic Motor

2.2Kw

Item

Description

電氣箱 Electric Controller Box

蓄氣筒 Gas cartridge

01 x Unit

人機介面設定控制箱 H.M.I Control Box

01 x Unit
