Arisun Green Veneer Clipper

Green Veneer Clipping general the function of green veneer clippers is to remove defects hole and recovery at the clipper depends on whether the objective is to clip for volume or grade
Model : CI-GVC

ARISUN CLIPPER FOR GREEN VENEER CUTTING

Automatic green veneer clipper CHANG I is special designed for random core green veneer thickness from1.2 mmto 4.5 mm.

From in feeding though edge detecting system. Using NC electronic detector controls counter system and clipper, automatic. Separate. There is a whole automatic production processing. High-accuracy, High-efficient production of plywood.

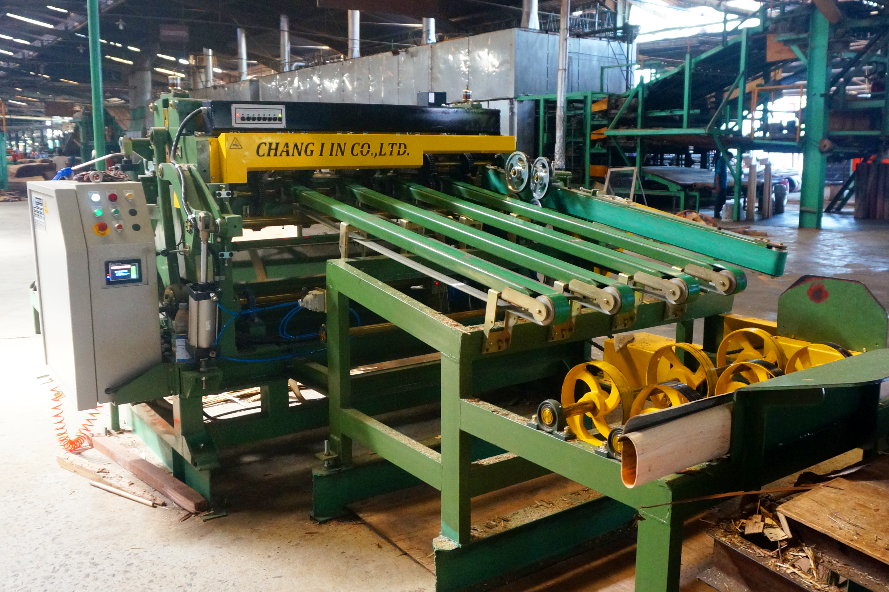

green veneer clipper3

Model

GVC-1350

Working Veneer Width (mm)

900~1270

Working Veneer Length (mm)

900~1600

Working Veneer Thickness (mm)

1.2~4.0

Length of Knife (mm)

1350

Feeding Speed (M/Min)

30

Defect Detecting by Sensor

08/Pcs

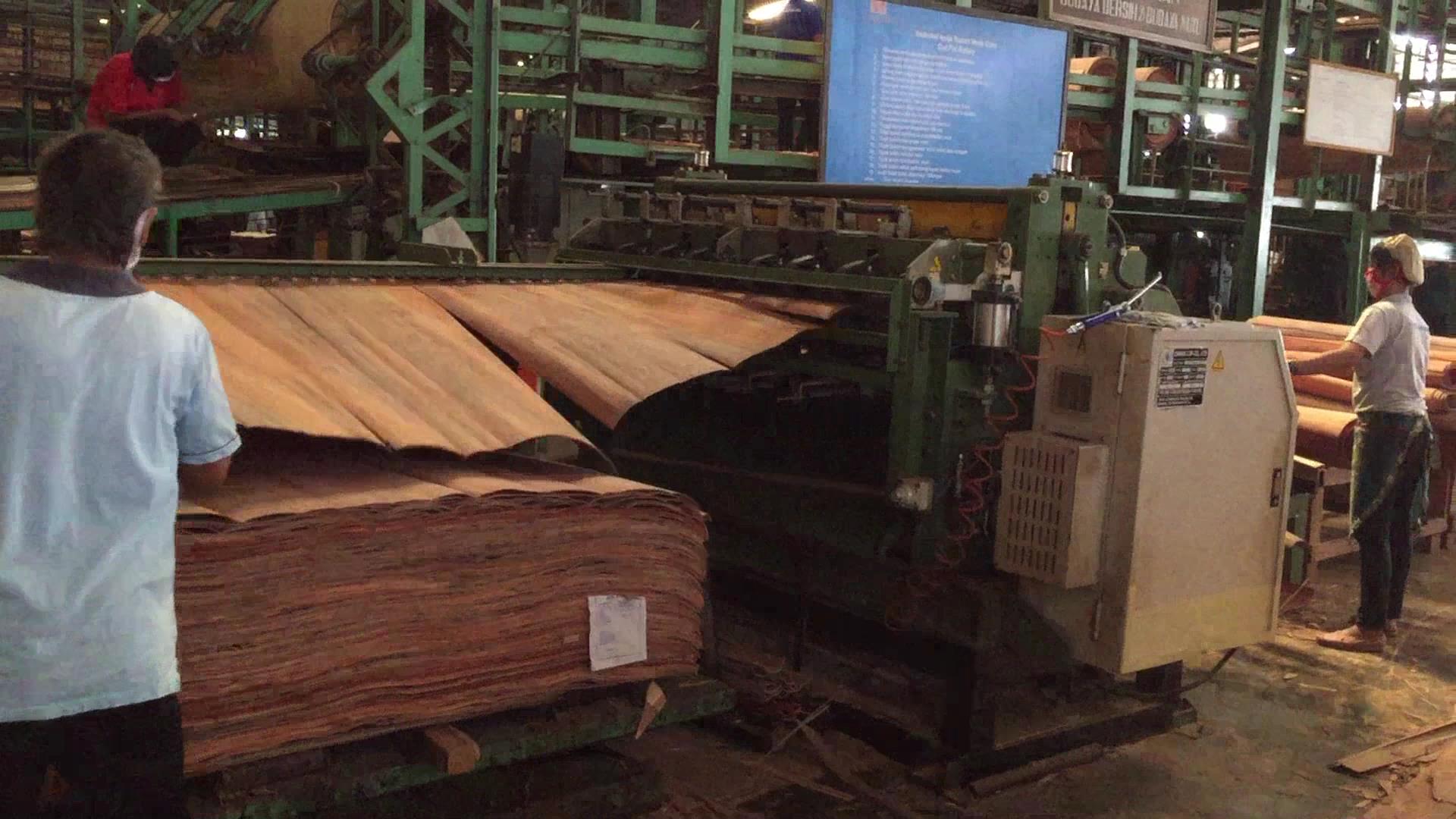

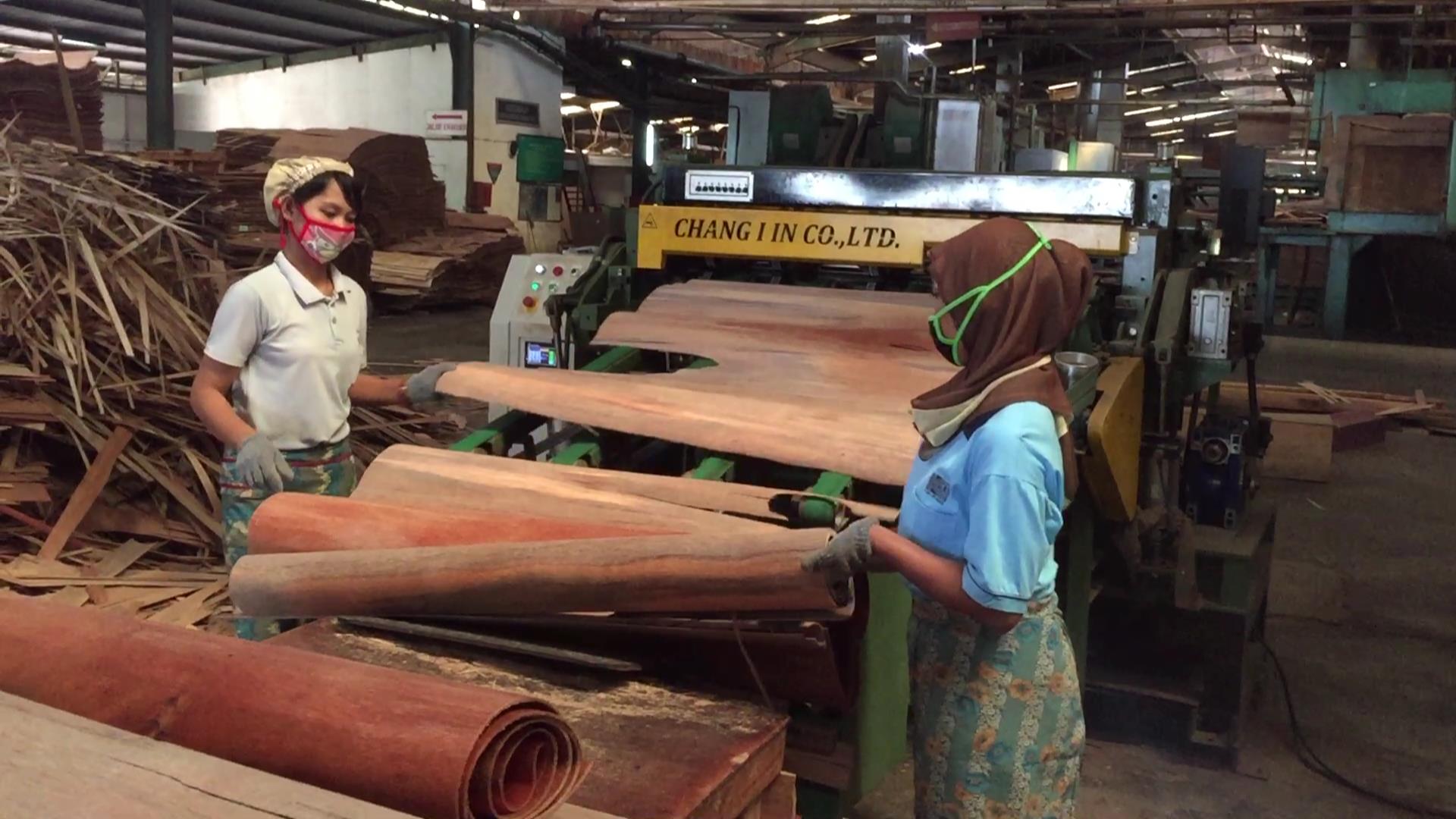

green veneer clipper2green veneer clipper1

FEATURE

1. With rewinding infeed end guide device veneers are parallel clipped.

2. Material saving: Automatic NC clipper reduces wastage and increases recovery rate.

3. Save labor: Operating is very simple; it does not need any skillful worker to operate and one or two workers are available.

4. The edging system made the output veneer steady & straight.

5. Easy to adjust, changing knife.

6. Operating direction can be arranging according to the user requirement for the process of their production line.


Customized special type

-Green Veneer Clipper with Auto Stacker-
