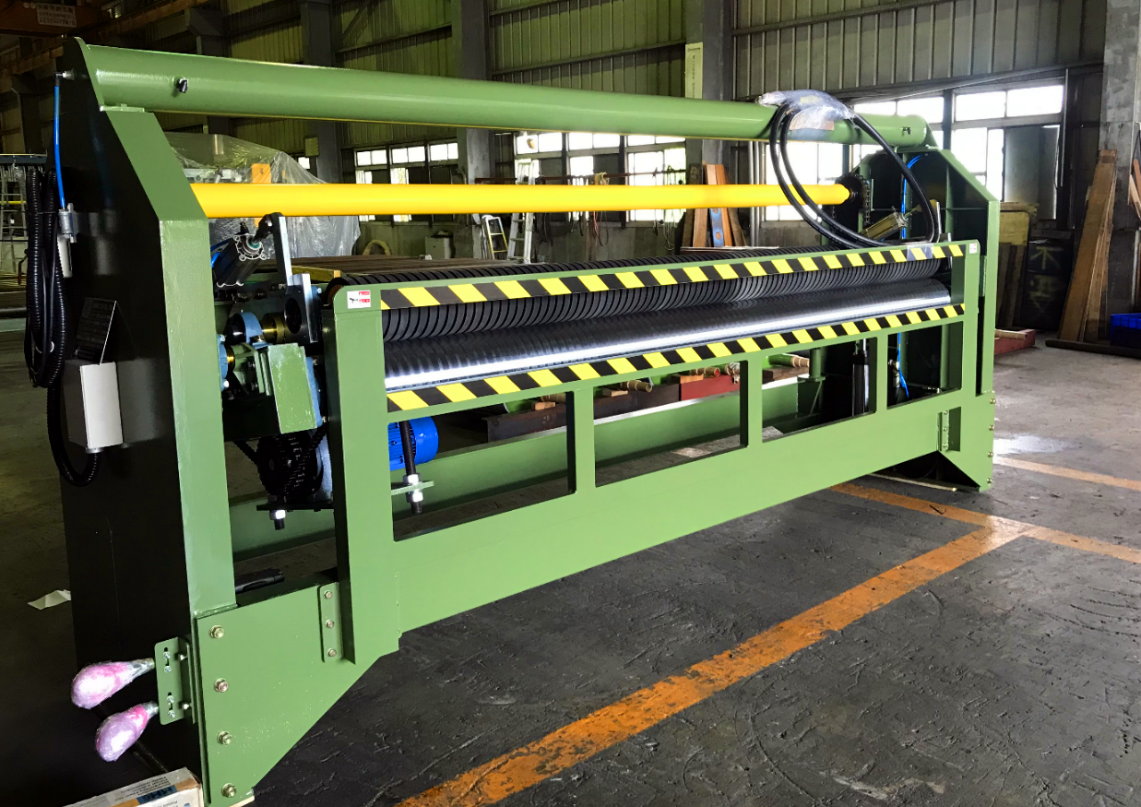

Semi Veneer Auto Feeder

Model : CI-DVF

Semi Veneer Auto Feeder

Semi Veneer Auto Feeder


The CI-DAF Series Semi Auto Feeder provides systematic and precise feeding of individual trays to the dryer. The feeder receives the top sheet of core veneer from each stacks and uniformly distributes them onto each individual deck of the dryer infeed section.


Specification

3 Section Semi Veneer Auto Feeder

01

Maximum working width

3000 mm

02

feeding section of number

3 deck

03

Available working width

580~2500mm

04

Available working thickness

0.6~6.0mm

05

Minimum working width

100mm

06

Feeding Speed

130m/min

07

Driver motor power

1.5kw

08

Hydraulic motor power

1.5kw

09

Occupied area

4150 x1000mm
