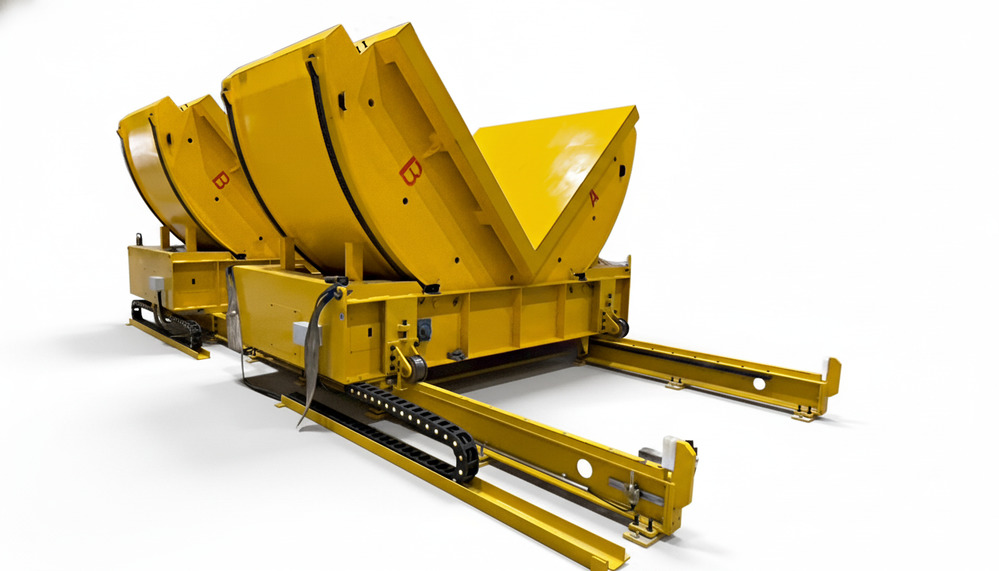

90 Degree Upender (Turner)
Overview and Application Fields
This machine is designed to meet the flipping requirements of various sizes of goods, enabling the conversion from horizontal to vertical orientation or vice versa. It is widely used in industries such as metallurgy, mold manufacturing, papermaking, cold storage, refrigeration, home appliances, ceramics, hardware, chemical, canning, and many others.
This machine is designed to meet the flipping requirements of various sizes of goods, enabling the conversion from horizontal to vertical orientation or vice versa. It is widely used in industries such as metallurgy, mold manufacturing, papermaking, cold storage, refrigeration, home appliances, ceramics, hardware, chemical, canning, and many others.
Model :
CI-UP10-90
Technical Specifications (CI-U10T-90)
| Item | Parameter |
|---|---|
| Model | CI-U10T-90 |
| Power Supply Voltage | AC380V, 60Hz |
| Turning Speed | 90–120 seconds (adjustable by inverter) |
| Flipping Angle (Body) | Limited or adjustable to a standard 90° |
| Flipping Capacity | Rated maximum flipping weight: 10 tons |
| Maximum flipping angle: 90° | |
| Overall Dimensions | Approx. 4469mm × 2200mm × 2958mm (H) |
| Total Equipment Weight | Approx. 13,000kg |
| Working Noise | ≤ 80 dB |
| Environmental Conditions | Humidity ≤ 98%, Temperature 0–40°C |
| Working Table Size | Single-side table: 3000mm |
| Flipping Motor | 5.5 kW × 2 |
| Hydraulic Motor | 3.7 kW × 1 |
