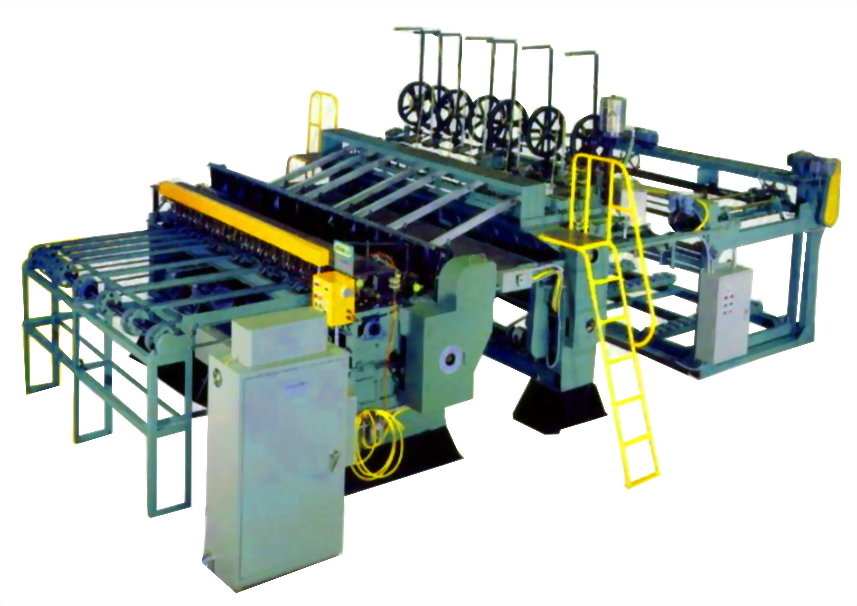

Back Veneer Composer



1. Save material:Using PLC type electronic
detector reduced odd back veneer to minimum wasting 5mm.

2. Save labor :Operation is very simple, one or two workers are available.

3. High quality:Through electronic detector, jointing by glue paper, we can
produce very average thickness back veneer and available thickness 0.5mm
-1.2mm.

4. You can easily adjust the 6'~8' size to match your requirement for use.

5. The stacker is the latest conveyer stacker which make the stack orderly and
keep well-arranged.

6. Raising product quantity:With 3pcs sliced veneer jointing to one sheet
.One hour can produce over 190 pcs perfect back veneer.



SPECIFICATION: Back Veneer Composer

Model

CI-BVC8-IVS

Working veneer width

1,800-2,600mm

Working veneer thickness

0.6-1.2mm

Min. Working veneer width

50mm

Thickness detecting point

26points

Working Thickness

0.6mm to 1.4mm

Taping position

7position

Veneer feeding speed

20m/min

Automatic cutting Length

900-1,300mm

Motor
for

for feed

1.5kw

for cam drive

2.2kw

for conveyor before clipper

0.4kw

for conveyor after clipper

0.4kw

for delivery conveyor

0.4kw

for veneer dropping

0.4kw

for table lifting

1.5kw

for full size clipper (Induction AC Servo)

2.2kw

Area Occupied

5.0Mw X 9.6ML

Machine weigh

N.M.9,325kg

Measurement

50M3
